Modul Drum Brake Axle Type B

The Modul Drum Brake Axle Type B is a specialized and robust product designed to improve safety, stability, and efficiency in light and medium-duty cargo vehicles.

This axle is available under product codes 81500120006 and 81500120017, and has an axle load capacity of up to 9,000 kilograms. The Ø300 drum brake system, combined with the high booster configuration, ensures reliable stopping power and secure braking performance even under full load conditions.

The GM distance is 360 and 400 mm, while BM is 940 mm, FM is 1100 mm, and the kingpin length (SP) ranges from 1950 to 1995 mm, providing proper installation compatibility across various vehicle types.

This axle is designed for 10-bolt wheels with specifications 175/225 and M22×1.5 bolts, and is compatible with tire sizes 235/75 R 17.5 and 245/70 R 17.5, ensuring both stability and high operational efficiency.

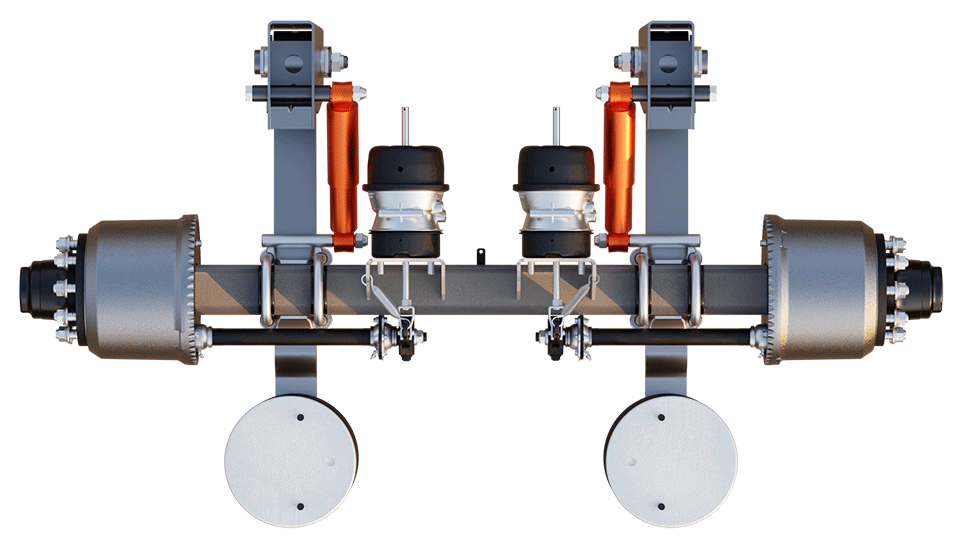

محور کاسه ای فنری چهار گوش 17.5 بوستر بالا دوبل فنر

Axle Technical Data Table

Product code Axle Load Brake system GM BM FM SP OH/K Tyres Recommended
81500120006 9000kg Drum Brake Ø300 360 940 1100 1950 175/225
10 Bolts M22 x 1.5		 235/75 R 17.5
245/70 R 17.5
81500120017 400 1995

Suspension System Specifications

E C F D G Empty without air X(mm) Loaded without air X(mm) Air Spring Bracket(mm) ST FH
255 130 35 83 87 140 130 - 268 240
180 165 50 270

Axle Technical Data Table

Product code
81500120001
81500120015
Axle Load
9000kg
-
Brake system
Drum Brake Ø300
-
GM
360
400
BM
940
-
FM
1100
-
SP
1950
1995
OH/K
175/225 10 Bolts M22 x 1.5
-
Tyres Recommended
235/75 R 17.5
245/70 R17.5

Suspension System Specifications

E
255
255
C
130
130
F
35
35
D
83
83
G
87
87
Empty without air X
140
180
Loaded without air X
130
165
Air Spring Bracket
-
50
ST
268
268
FH
240
270

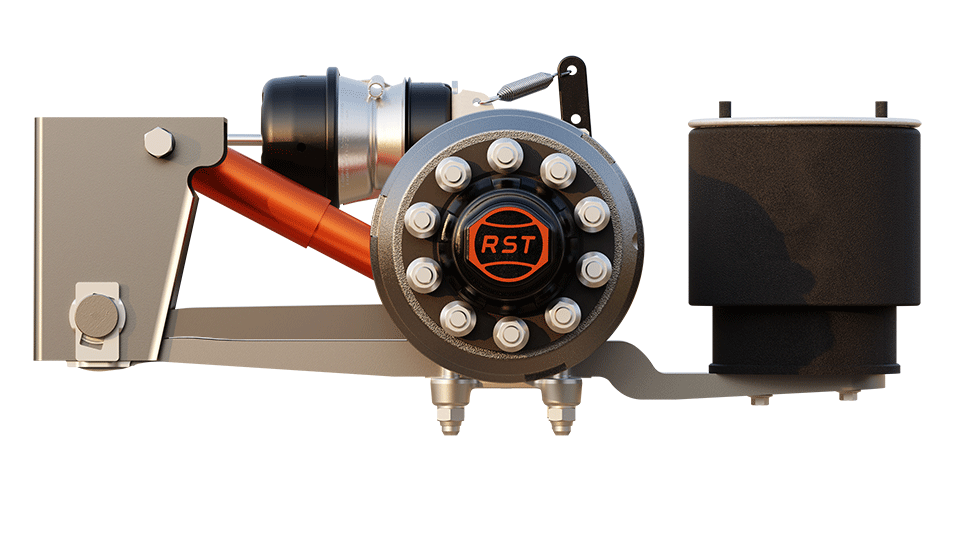

محور کاسه ای فنری چهار گوش 17.5 بوستر بالا و فنر دوبل

From a suspension system perspective, the 17.5 square spring drum axle with double springs and reinforced design provides improved stability against both lateral and longitudinal loads. The E distance is 140 mm, the F value is 130 mm, and the reinforcement component thickness ranges from 35 to 87 mm.

In addition, the air spring bracket positioning and precise dimensional calculations for both unloaded and air-sprung loaded conditions ensure easier installation and extended component lifespan. Thanks to these features, this product is a suitable option for applications that require high safety, greater durability, and reliable performance under heavy-duty operating conditions.
